HVAC Ductwork Auto-Guide Flanging Machine

View All Products →

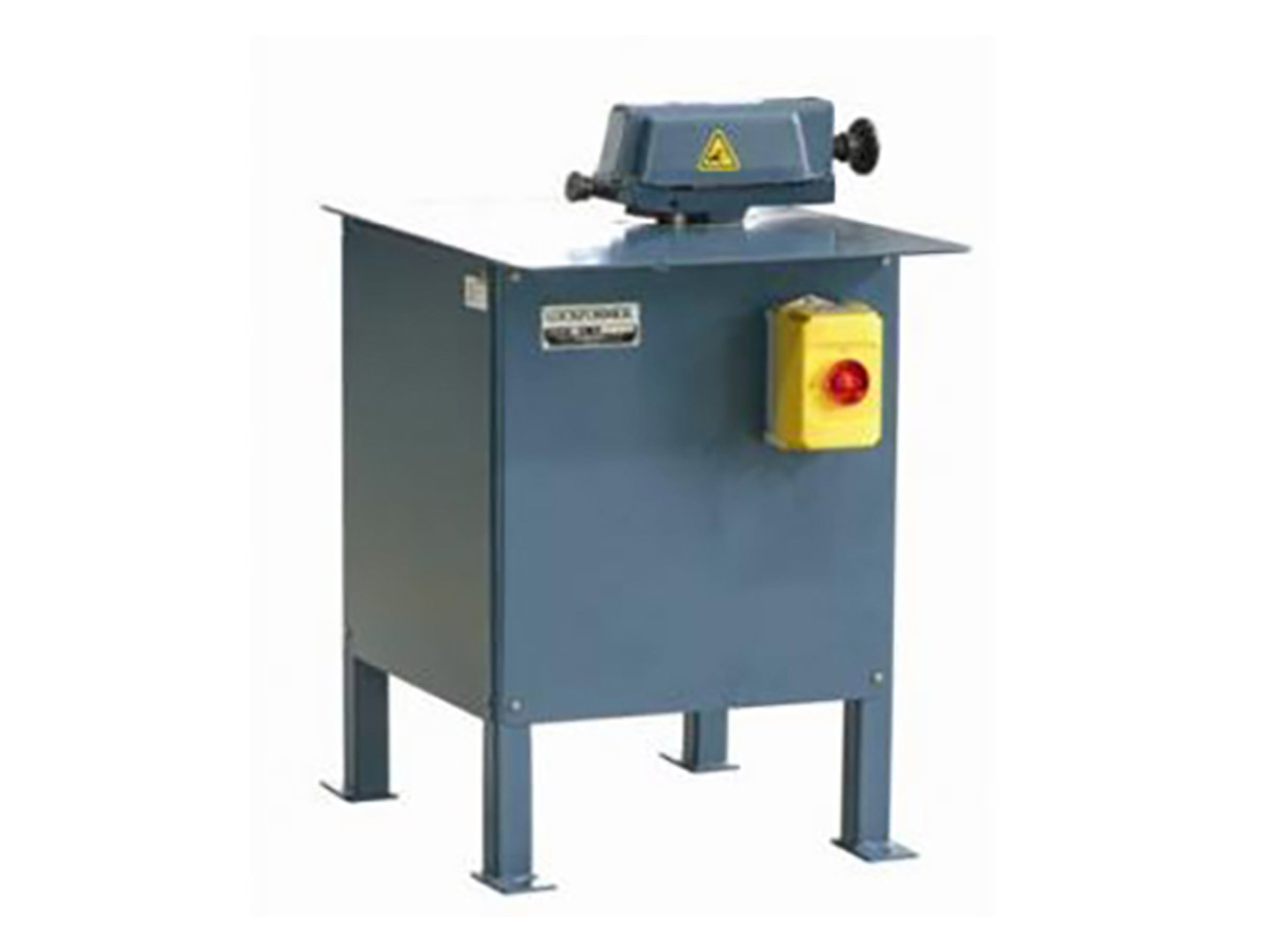

HVAC Ductwork Auto-Guide Flanging Machine
HVAC Ductwork Auto-Guide Flanging Machine - Image 2
HVAC Ductwork Auto-Guide Flanging Machine - Image 3
HVAC Ductwork Auto-Guide Flanging Machine - Image 4

The Lockformer Pittsburgh Lock Roll Formers, trusted since the 1940s, set the standard for HVAC ductwork with their strength, ease of use, and high-quality performance. Available in six configurations, they feature durable motors, precision bearings, heavy-duty chassis plates, and robust steel stands with a premium finish.

For pricing, availability, or more details, please contact us today! Onsite installation and training available.

The Pittsburgh lock revolutionized the HVAC industry in the late 1940’s and is still used today for its strength and ease in assembling ductwork. And for nearly that long, the Lockformer Pittsburgh Lock Roll Formers have set the standard for product quality and performance. Available in six (6) different configurations with varying capacities, configurations, and forming speeds to fit your specific operational needs, all Lockformer Pittsburgh Lock Roll Formers feature industrial motors, high precision needle-type bearings, heavy 3/4″ chassis plate, case-hardened and ground roll shafts, and arc-welded steel stands protected with Lockformer’s top-quality primer and paint finish.

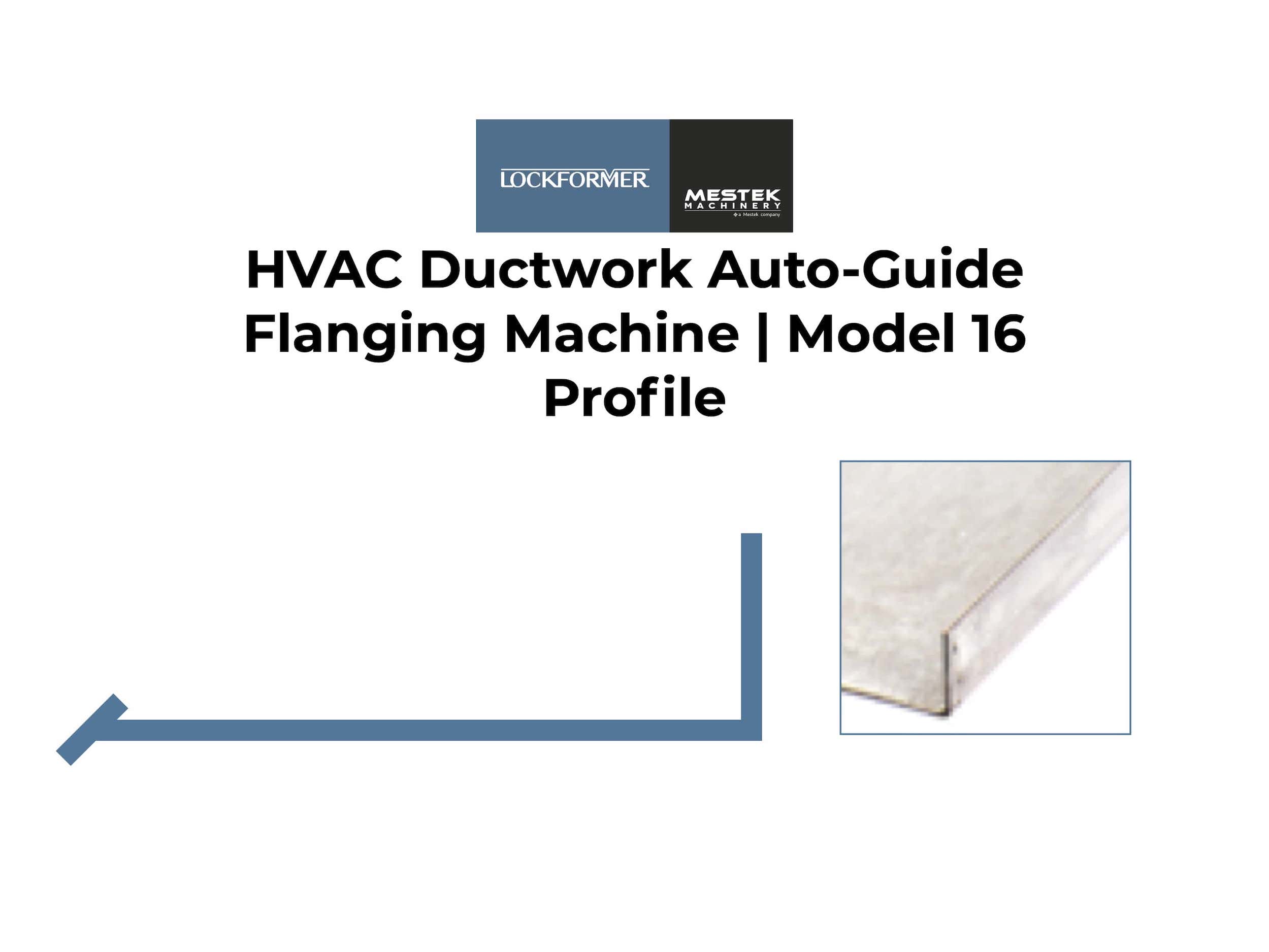

Lockformer HVAC Ductwork Auto-Guide Flanging Machine | Model 16

  • Capacity: 16 gauge maximum (working range: 16-24 gauge)
  • Depth of Pocket/Size: Two flange heights available. Specify 3/8″ or 1/4″
  • Speed: 18 feet per minute
  • Motor/Voltage: 3/4 hp, 115/230 volts, 60 cycle, single phase, A.C. 1,800 RPM
  • Dimensions/Weight: 24″ (L) x 24″ (W), 34″ passline, 225 lbs.
