The Pittsburgh lock, introduced in the 1940s, revolutionized HVAC ductwork. Lockformer Pittsburgh Lock Roll Formers, available in six configurations, set the standard for quality, featuring industrial motors, precision bearings, durable chassis plates, and sturdy steel stands, all finished with premium primer and paint.

For pricing, availability, or more details, please contact us today! Onsite installation and training available.

The Pittsburgh lock revolutionized the HVAC industry in the late 1940’s and is still used today for its strength and ease in assembling ductwork. And for nearly that long, the Lockformer Pittsburgh Lock Roll Formers have set the standard for product quality and performance. Available in six (6) different configurations with varying capacities, configurations, and forming speeds to fit your specific operational needs, all Lockformer Pittsburgh Lock Roll Formers feature industrial motors, high precision needle-type bearings, heavy 3/4″ chassis plate, case-hardened and ground roll shafts, and arc-welded steel stands protected with Lockformer’s top-quality primer and paint finish.

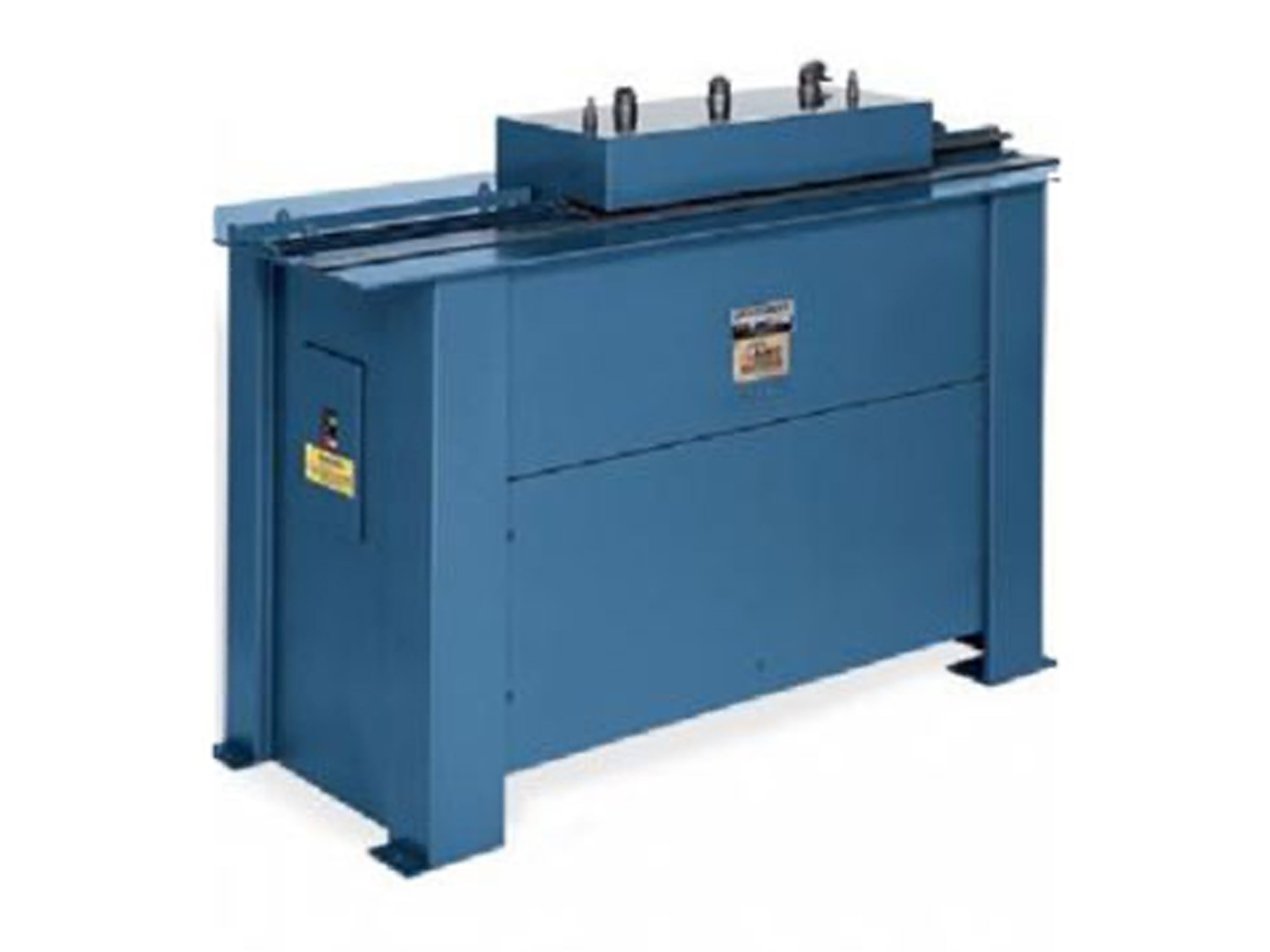

Pittsburgh Lock Model 14

  • Capacity: 14–16 gauge
  • Depth of Pocket/Size: 1/2″, Uses approximately 1-3/8″ of material
  • Other: Width of hammer-over edge adjustable up to 3/8″. Extended shafts for mounting auxiliary rolls.
  • Speed: 35 feet per minute
  • Motor/Voltage: 5 hp, 230/460 volts, 60 cycle, 3 phase, A.C. 1,800 RPM. Other motors available upon request
  • Dimensions/Weight: 58.5″ (L) x 24″ (W) x 41″ (H), 34″ passline, 750 lbs.

Pittsburgh Lock Model 16

  • Capacity: 16-20 gauge
  • Depth of Pocket/Size: 1/2″, Uses approximately 1-3/8″ of material
  • Other: Width of hammer-over edge adjustable up to 3/8″ (extended shafts for mounting auxiliary rolls)
  • Speed: 40-45 feet per minute
  • Motor/Voltage: 3 hp, 230/460 volts, 60 cycle, 3 phase, A.C. 3,600 RPM (other motors available upon request)
  • Dimensions/Weight: 58.5″ (L) x 24″ (W) x 41″ (H), 34″ passline, 750 lbs.

Pittsburgh Lock Model 18

  • Capacity: 18-22 gauge
  • Depth of Pocket/Size: 3/8″, Uses approximately 1-1/8″ of material
  • Other: Width of hammer-over edge adjustable up to 3/8″ (extended shafts for mounting auxiliary rolls)
  • Speed: 40-45 feet per minute
  • Motor/Voltage: 2 hp, 230/460 volts, 60 cycle, 3 phase, A.C. 1,800 RPM (other motors available upon request)
  • Dimensions/Weight: 58.5″ (L) x 24″ (W) x 41″ (H), 34″ passline, 750 lbs.

Pittsburgh Lock Model 20 Super Speed

  • Capacity: 20-26 gauge
  • Depth of Pocket/Size: 5/16″, Uses approximately 1″ of material
  • Other: Width of hammer-over edge adjustable up to 3/8″ (extended shafts for mounting auxiliary rolls)
  • Speed: 75 feet per minute
  • Motor/Voltage: 2 hp, 230/460 volts, 60 cycle, 3 phase, A.C. 1,800 RPM (other motors available upon request)
  • Dimensions/Weight: 48″ (L) x 24″ (W) x 42″ (H), 34″ passline, 450 lbs.

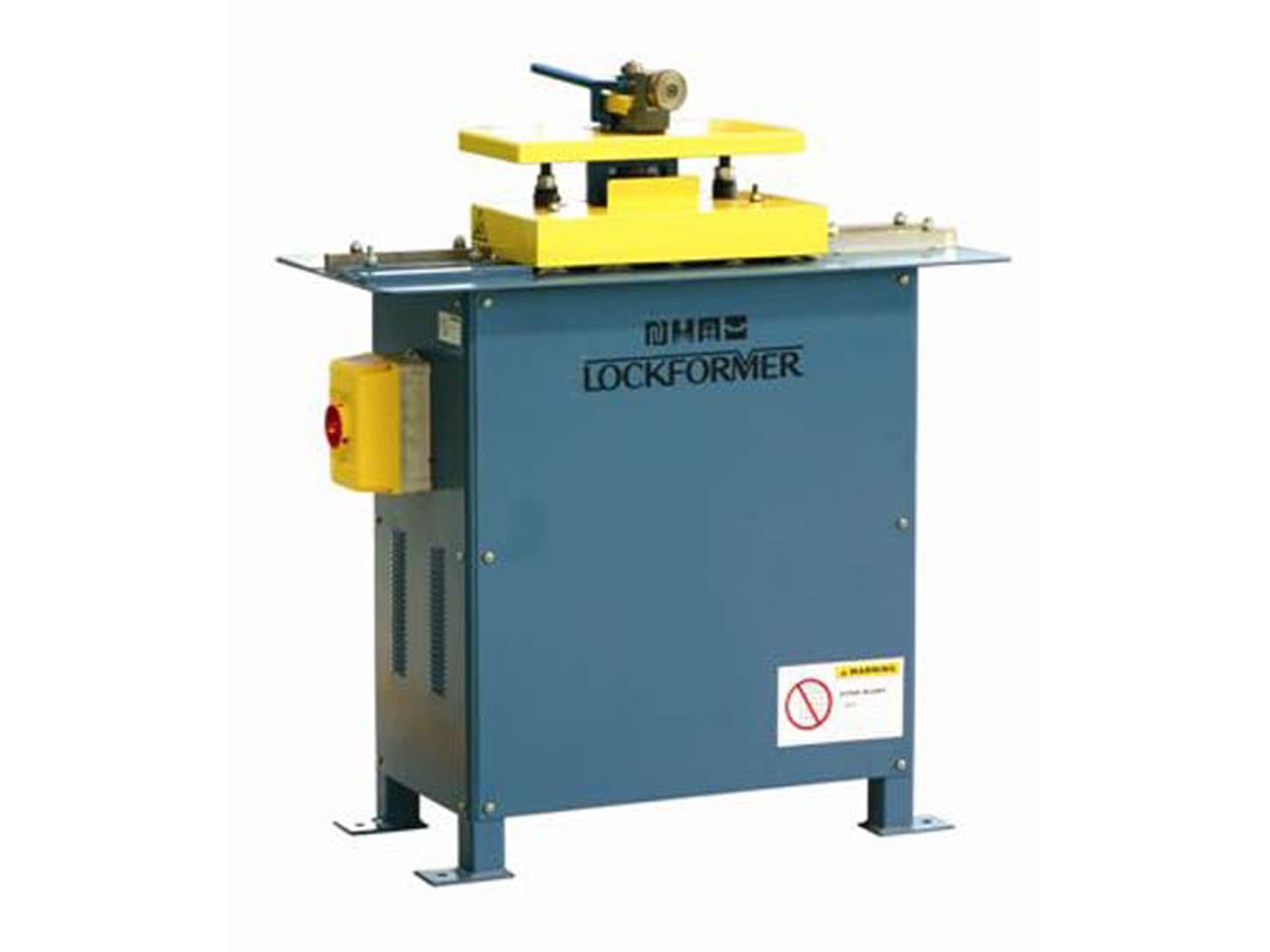

Pittsburgh Lock Model 20

  • Capacity: 20-26 gauge
  • Depth of Pocket/Size: 5/16″, Uses approximately 1″ of material
  • Other: Width of hammer-over edge adjustable up to 3/8″ (extended shafts for mounting auxiliary rolls)
  • Speed: 25 feet per minute
  • Motor/Voltage: 3/4 hp, 115/230 volts, 60 cycle, 3 phase, A.C. 1,800 RPM (other motors available upon request)
  • Dimensions/Weight: 36″ (L) x 16.5″ (W) x 41″ (H), 32″ passline, 450 lbs.
  • Optional auto-guide power flanger attachment available*

Pittsburgh Lock Model 24

  • Capacity: 24-28 gauge
  • Depth of Pocket/Size: 5/16″, Uses approximately 1″ of material
  • Other: Width of hammer-over edge adjustable up to 3/8″
  • Speed: 30-35 feet per minute
  • Motor/Voltage: 1/3 hp, 115/230 volts, 60 cycle, 3 phase, A.C. 1,800 RPM (other motors available upon request)
  • Dimensions/Weight: 30″ (L) x 13.5″ (W) x 20″ (H), 175 lbs.
  • Optional auto-guide power flanger attachment available*

Lockformer Auto-Guide Power Flanging Attachment

The Lockformer Auto-Guide Power Flanger attachment is available as an optional component for both the Model 20 and Model 24 Lockformer Pittsburgh Lock Roll Formers. This flanging attachment will automatically follow any edge – straight, inner, or outer radii — while forming a 7/32 (outside) flange height and no change over is necessary between Pittsburgh Lock and flanging operations… just turn up a starting flange in the table slot, feed materials into the rolls and let go. Handles radii down to 3-1/4” or 1-3/8” manually at speeds of 16-18 fpm.
